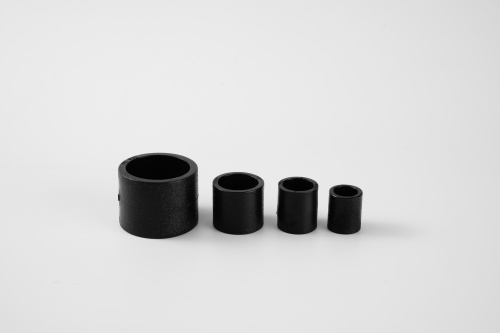

PE plug-in type isometric directly:

It is a pipe fitting for connecting PE pipes of the same diameter.

Basic definition

The PE plug-in type is a pipe connection made of polyethylene (PE) as the raw material and is used to connect PE pipes of the same diameter.

Features

• Convenient connection: With a plug-in design, you only need to insert the PE pipe into the inside of the joint, and tight connections can be achieved through hot melt or special glue, without the need for complicated tools.

• Good sealing: There is a special sealing ring design inside, which can maintain a good seal even under high pressure and high temperature environments to prevent water and air leakage.

• Strong corrosion resistance: PE materials are resistant to corrosion by a variety of chemical substances and are suitable for harsh environments.

• Various specifications: available in various sizes such as Φ20, Φ25, Φ32, Φ40, Φ50, Φ63, etc., and can also be customized.

Technical parameters

• Material: High density polyethylene (HDPE).

• Nominal pressure: generally 1.6MPa.

• Wall thickness: varies depending on specifications, such as the wall thickness with a diameter of 20mm is 2.3mm, and the wall thickness with a diameter of 110mm is 59.3mm.

• Applicable temperature range: usually from -20℃ to 40℃.

Application scenarios

• Water supply system: used for urban water supply, water supply in residential communities, etc.

• Drainage system: suitable for urban rainwater and sewage discharge.

• Agricultural irrigation: used in farmland irrigation systems.

• Gas delivery: Some specially treated PE fittings can be used for gas delivery.

Connection method

• Hot melt connection: Heat the connecting parts of the pipe and fittings to a molten state at the same time, and then quickly connect them together.

• Mechanical connection: Connect the pipes and fittings together through special mechanical devices.
